Matrice 4E Drone
Pay for your order by 3 PM Eastern and we'll typically have it out the door the same day (LTL freight excluded) for fast and reliable delivery!
Built for precision mapping, surveying, and construction work, the Matrice 4E pairs a 20MP wide-angle mechanical-shutter camera with 48MP medium-tele and telephoto cameras, plus a laser rangefinder with a measurement range of up to 1,800 meters. The mechanical shutter enables rapid mapping with photo intervals as fast as 0.5 seconds, while Distortion Correction 2.0 helps improve image accuracy and photogrammetric reconstruction.
RTK capability delivers centimeter-level positioning, while O4 Enterprise transmission provides up to 25 km of transmission range under FCC conditions. On a single battery, the Matrice 4E offers up to 49 minutes of flight time and a maximum flight distance of 35 km with standard propellers, helping operators cover large sites in fewer flights.
About
Matrice 4E Drone
Flagship Intelligent Multi-Sensor Compact Drone
Efficient Flight, Intelligent Operations
Laser Range Finder, Precise Measurement
The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.
Observation Range Recording
DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.

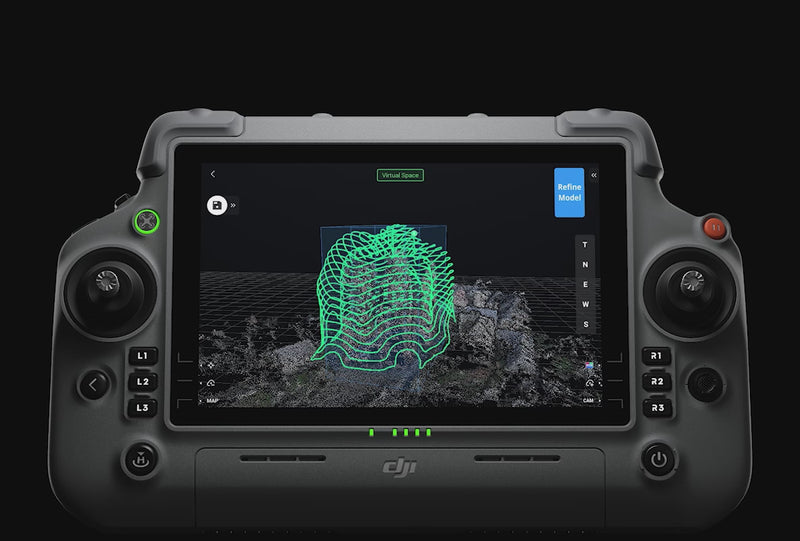

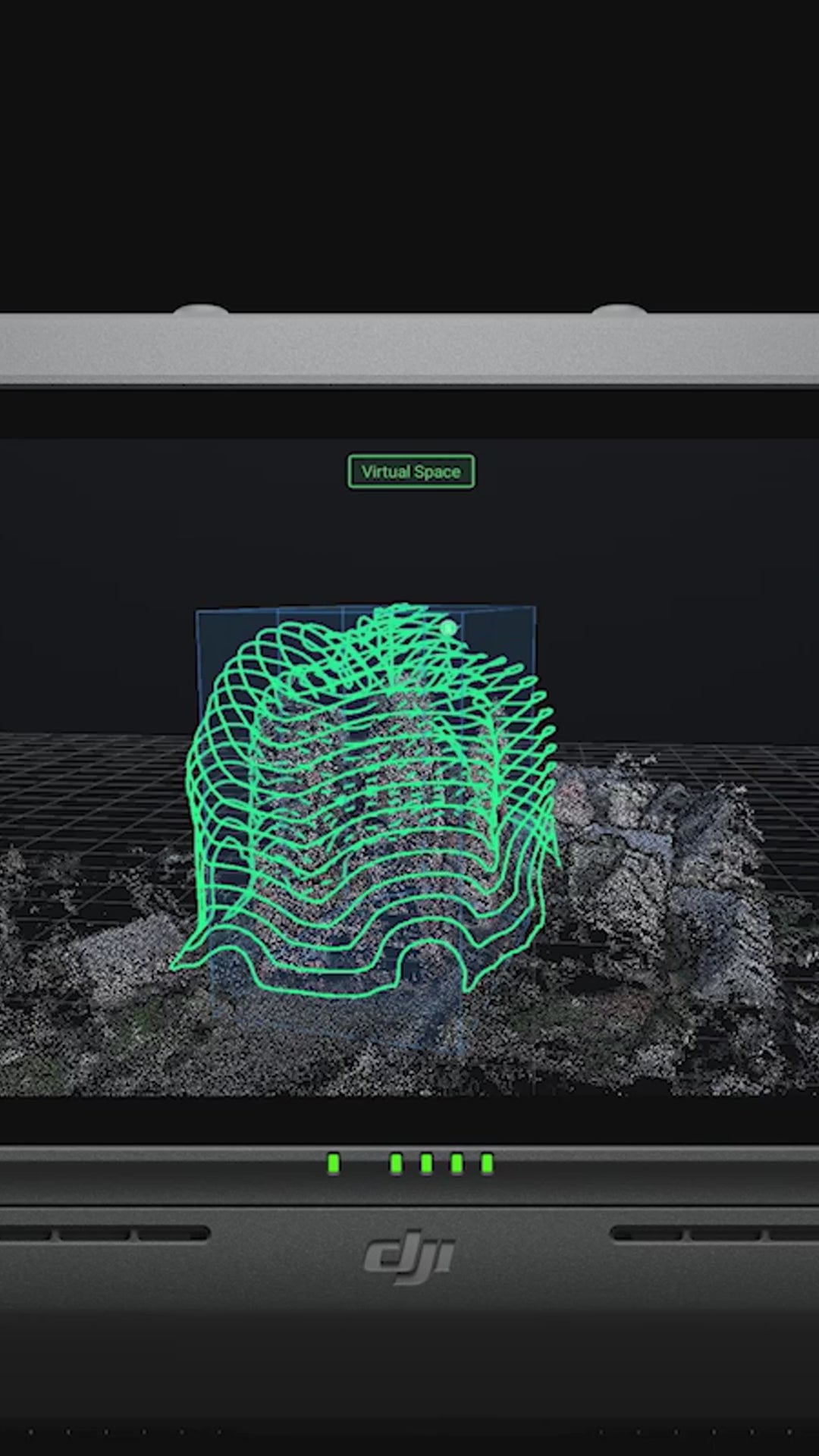

Smart 3D Capture, Precision Modeling
DJI Matrice 4E supports Smart 3D Capture, which allows you to capture and create a rough model on the remote controller. Based on the rough model, it can quickly generate precise mapping routes close to a structures surface, completing detailed measurements and modeling of irregular buildings. It also supports displaying virtual space routes and waypoint photos for smart 3D capture, making it convenient to assess specific routes' flight safety and coverage area.
Compare Matrice 4T with Matrice 4E
How do they stack up?
DJI Matrice 4T
DJI Matrice 4E
1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm
4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter
1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D) [1]
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D) [1]
Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode
FOV: 6°, Illumination Distance: 100 m
